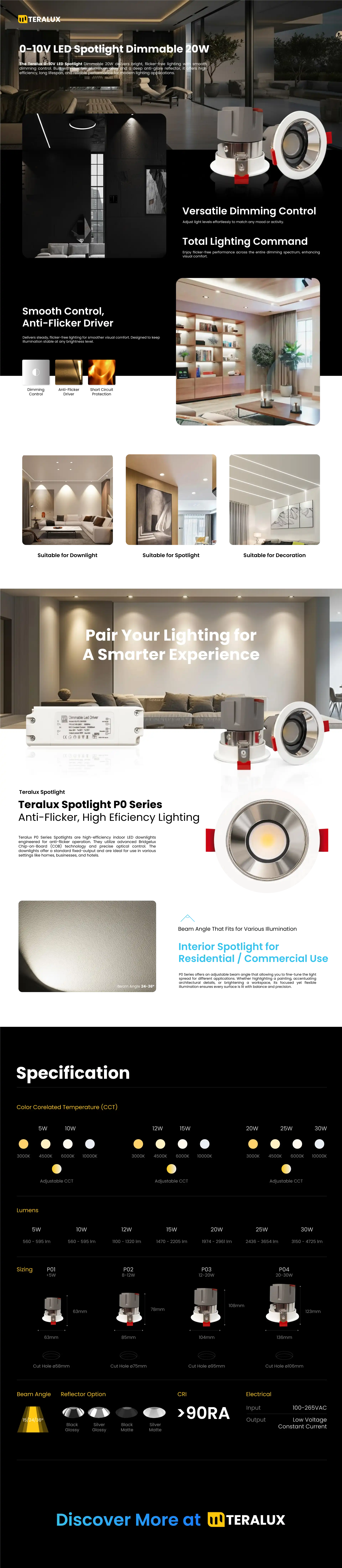

0-10V LED Spotlight Dimmable 20W

**TERALUX Smart LED Dimming Downlight 20W 0–10V Driver**
Smart LED Dimming Downlight
2 Years Warranty

**Specifications & Features :**
Brand : TERALUX
Model : FDLCP03-20WDIM010V
CCT Options : 3000K Warm White / 4000K Neutral White / 6000K Cool White / 10000K Daylight
Driver Type : 0–10V Dimming Driver (compatible with analog dimmer or external control system)
Dimming Range : 1% – 100% smooth dimming, flicker-free (ERP compliant)
Output Current Accuracy : ±5%
Synchronization : Stable response for group dimming and smooth transitions
Input Voltage : AC 100 – 265V
Wattage : 20W
Luminous Flux : 2200 lm
Luminous Efficiency : 110 lm/W
CRI : ≥90 Ra
Beam Angle : 15° / 24° / 36°
Protection Rating : IP20 (Indoor use)
Surge Protection : 2KV lightning protection
Safety Protections : Short-circuit, overload, open-circuit, over-temperature
Lifespan : 50,000 hours average
Housing Material : Aluminum Alloy
Body Color : White
Reflector Color : Black Glossy / Silver Glossy
Design : Compact high-lumen housing with deep anti-glare reflector for precise beam control

**Housing Size Options :**
* P03 : Ø104mm x H108mm, Cutout Ø98mm
* P04 : Ø103mm x H120mm, Cutout Ø120mm

**Packing List :**
1x TERALUX LED Downlight 20W
1x LED Driver 0–10V Dimming (Teralux 600mA Constant Current)

**Warranty :**
2 Years Limited Warranty
